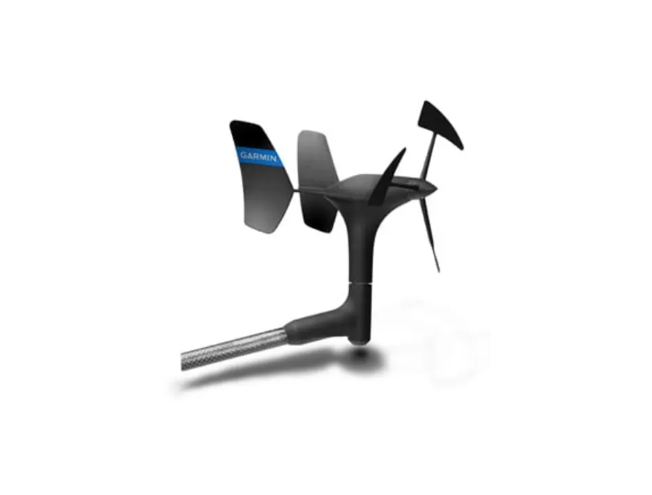

gWind andurid Juhtmega komplekt
gWind andurid Juhtmega komplekt

gWind anduridJuhtmega komplekt

Tootekood: 010-01227-00

Täpse tuulekiiruse ja -suuna mõõtmiseks mõeldud juhtmevabad tuuleandurid purjekatele ja mootorpaatidele.

Klubiliikme hind607,35€?
Tavahind639,31€

PEATSELT SAADAVAL. JÄTA OMA E-MAIL VÕI MOBIILI NUMBER.
Saadame Sulle automaatse teate, kui toode on taas meie poodides saadaval.

Google Reviews
4.7
644 reviews
Ülevaade
  • Three-bladed propeller for accurate True Wind Speed (TWS) in lighter air
  • Twin-fin design gives a stable True Wind Angle (TWA)
  • Optic reading technique for superior performance at low wind speeds with excellent linearity
  • GND™ 10 black box bridges NMEA 2000® data to Nexus Network and enables Garmin compatible chartplotters integrate with Nexus sail equipment and vice versa
  • Easy plug-and-play installation between Nexus, Garmin chartplotters, NMEA 2000 and USB

The gWind transducer features twin-fin technology with 3-bladed propeller for accurate TWS in lighter air while the twin-fin design gives a stable TWA. The 3-bladed propeller, unlike a cups design, is always efficient. Combined with optic reading this transducer provides superior accuracy at low wind speeds and also provides for excellent linearity.

The included GND 10 black box bridge enables the Nexus Network and compatible Garmin chartplotters to share critical NMEA 2000 data. The GND 10 enables Garmin chartplotter owners to use Nexus sail equipment and vice versa.

Tehnilised andmed
  • Unit Dimension, WxH:610mm x 345mm(17.7" x 11.8")
  • Weight: 260g
  • Cable Length: 25m
  • Waterproof: IPX-6 (protected against heavy seas)
  • Temp Range: From -15°C to 70°C (5°F to 158°F)
  • Storage temperature: From -20° to 80°C (-4° to 176°F)
  • Voltage Range: 9-16V
  • Power Usage: 0.33W
  • Typical current draw at 12 VDC:28mA
  • Compass Safe Distance: N/A
  • Accuracy Angle: Better than ±1.5°
  • Speed: Better than ±3%
  • Wind speed range:0. 8-90 knots (0. 4-50 m/s)
  • NMEA 2000® Load Equivalency Number (LEN): N/A
  • Wireless Connectivity: No
Karbis sisaldub

gWind™ & GND™ 10 (010-01227-00)

  • gWind transducer
  • GND™ 10
  • NMEA 2000® drop cable (2 m)
  • NMEA 2000 T-connector
  • Mast cable with female connector (25 m)
  • Nexus female field installable connector
  • Mast bracket
  • Mounting hardware
  • Documentation
